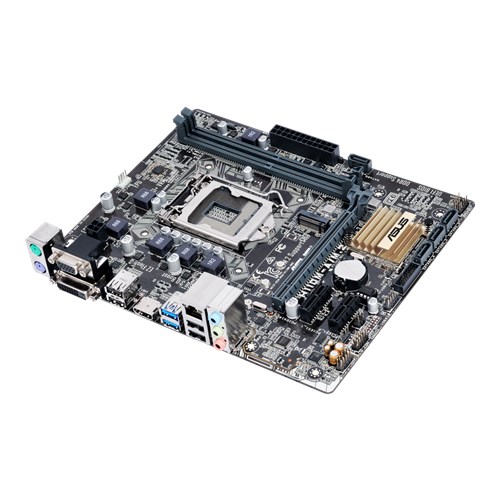

ASUS H110M-A / M.2 / CSM | 90MB0R60-M0EAYC

Technické specifikace:

Formát: mATX (22, 6x18, 5cm
CPU: Intel® Socket 1151 for 7th/ 6th Generation Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® Processors (turbo boost 2.0)
Čipová sada: Intel® H110
Operační paměť: 2 x DIMM, Max. 32GB, DDR4 2400/ 2133 MHz Non-ECC, XMP
Lan: Intel® I219V
Zvuk: Realtek® ALC887 8-Channel High Definition
Grafická karta: V závislosti na CPU

Úložný prostor:
Intel® H110 chipset :
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode)*2
-4 x SATA 6Gb/ s port(s),

Rozšiřující sloty:
-1 x PCIe 3.0/ 2.0 x16 (x16 mode)
-2 x PCIe 2.0 x1

Externí porty:
-1 x PS/ 2 keyboard (purple)
-1 x PS/ 2 mouse (green)
-1 x DVI-D
-1 x D-Sub
-1 x HDMI
-1 x LAN (RJ45) port(s)
-2 x USB 3.1 Gen 1 (blue)
-4 x USB 2.0
-3 x Audio jack(s)

Interní porty:
-1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
-1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
-1 x M.2 Socket 3
-1 x COM port(s) connector(s)
-4 x SATA 6Gb/ s connector(s)
-1 x CPU Fan connector(s) (1 x 4 -pin)
-1 x Chassis Fan connector(s) (1 x 4 -pin)
-1 x S/ PDIF out header(s)
-1 x 24-pin EATX Power connector(s)
-1 x 4-pin ATX 12V Power connector(s)
-1 x Front panel audio connector(s) (AAFP)
-1 x Clear CMOS jumper(s)
-1 x System panel connector

Příslušenství:
User s manual
I/ O Shield
2 x SATA 3Gb/ s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0

Více na stránkách https:/ / www.asus.com/ Motherboards/ H110M-A-M-2-CSM/ specifications/
