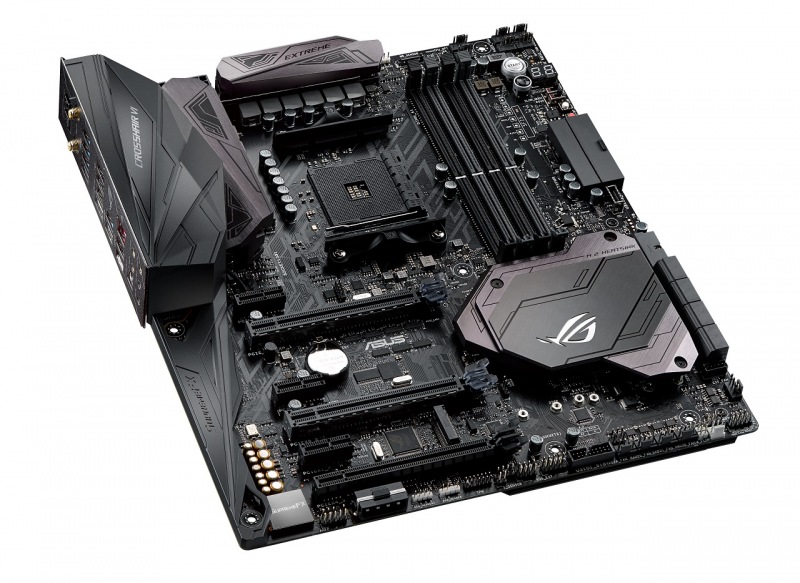

ASUS ROG CROSSHAIR VI EXTREME | 90MB0UD0-M0EAY0

Základní informace

*AMD AM4 Socket pro AMD Ryzen™/ 7th Generation A-series/ Athlon™ Processors
*podpora AM4 socketu 14 nm CPU
*podpora až 8 jáder CPU

Technické specifikace:
Formát: Extended ATX ( 30.5 cm x 26.9 cm )
CPU: AMD AM4 Socket pro AMD Ryzen™/ 7th Generation A-series/ Athlon™ Processors
Čipová sada: AMD X370
Operační paměť: až 4 x DIMM, Max. 64GB, DDR4 3200 MHz (přetakt.), ECC a NON-ECC
Lan: ntel® I211-AT, 1 x Gigabit LAN Controller(s)/ Anti-surge LANGuard/ ROG GameFirst IV
Bezdrátová síť: Wi-Fi 802.11 a/ b/ g/ n/ ac, Bluetooth V4.2
Zvuk: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

Úložný prostor:
AMD Ryzen™ Processors :
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/ Athlon™ Processors :
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X370 chipset :
-8 x SATA 6Gb/ s port(s),
Support Raid 0, 1, 10

Rozšiřující sloty:
AMD Ryzen™ Processors
-2 x PCIe 3.0/ 2.0 x16 (x16 or dual x8)
AMD 7th Generation A-series/ Athlon™ Processors
-1 x PCIe 3.0/ 2.0 x16 (x8 mode)
AMD X370 chipset
-1 x PCIe 2.0 x16 (max at x4 mode)
-3 x PCIe 2.0 x1

Externí porty:
-1 x LAN (RJ45) port(s)
-1 x USB 3.1 Gen 2 (black)USB Type-CTM
-1 x USB 3.1 Gen 2 (red)Type-A
-6 x USB 3.1 Gen 1 (blue)
-4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
-1 x Optical S/ PDIF out
-1 x Clear CMOS button(s)
-1 x USB BIOS Flashback Button(s)
-1 x ASUS 2x2 Wi-Fi 802.11 a/ b/ g/ n/ ac and Bluetooth v4.2 module
-5 x Gold-plated audio jacks

Interní porty:
-1 x Aura Addressable Strip Header(s)
-2 x Aura RGB Strip Headers
-2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
-1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
-1 x M.2 Socket 1 with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
-1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
-1 x TPM header
-8 x SATA 6Gb/ s connector(s)
-1 x CPU Fan connector(s) (1 x 4 -pin)
-1 x CPU OPT Fan connector(s) (1 x 4 -pin)
-1 x Chassis Fan connector(s) (1 x 4 -pin)
-1 x W_PUMP+ connector (1 x 4 -pin)
-1 x 8-pin EATX 12 V Power connector
-1 x 4-pin EATX 12 V_1 Power connector(s)
-1 x 24-pin EATX Power connector(s)
-1 x Front panel audio connector(s) (AAFP)
-1 x Internal speaker connector(s)
-1 x System panel(s) (Q-Connector)
-1 x Slow Mode switch(es)
-7 x ProbeIt Measurement Points
-1 x EZ Plug connector(s) (4-pin Molex power connector)
-1 x Reset button(s)
-1 x 5-pin EXT_FAN(Extension Fan) connector
-1 x LN2 Mode jumper(s)
-1 x ROG extension (ROG_EXT) header(s)
-1 x Safe Boot button
-1 x ReTry button
-1 x W_IN header
-2 x W_OUT header
-1 x W_FLOW header
-1 x Thermal sensor connector
-1 x Start button
-1 x USB 3.1 Gen 2 front panel connector
-1 x 9 pin Monoblock sensor
-8 x Radiator Fan Headers

Příslušenství:
-User s manual
-1 x ROG logo plate sticker
-8 x SATA 6Gb/ s cable(s)
-1 x M.2 Screw Package
-1 x Supporting DVD
-1 x Fan Extension Card (3 x 4-pin fan out)
-1 x Fan Extension card screw pack
-1 x Fan Extension card cable
-1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/ b/ g/ n compliant)
-1 x SLI HB BRIDGE(2-WAY-M)
-1 x ROG big sticker
-1 x Q-Connector
-1 x 10-in-1 ROG cable label
-1 x Extension Cable for RGB strips (80 cm)
-1 x Extension cable for Addressable LED
-3 x Thermistor cable(s)
-1 x ROG coaster(s)

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1...

Více na stránkách výrobce https:/ / www.asus.com/ us/ Motherboards/ ROG-CROSSHAIR-VI-EXTREME/ specifications/
