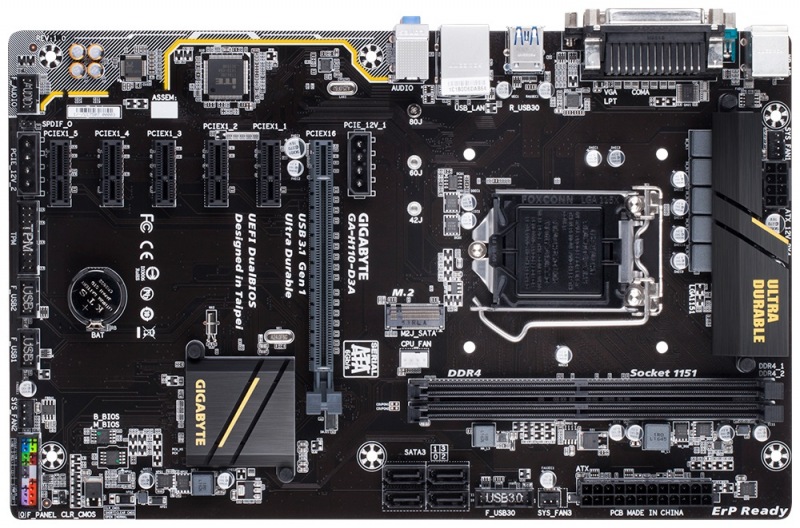

GIGABYTE H110-D3A (rev. 1.0) mining
 GIGABYTE H110-D3A (rev. 1.0) mining PN kód: GA-H110-D3A
Chipset: Intel® H110 Exprss Chipset
Revize: 1.0 Rozměrový formát: ATX Form Factor; 30.5cm x 19.0cm Podpora pro procesory: 7th/ 6th Generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors Patice procesoru: LGA 1151 Pozice na paměti: 2 x DDR4 DIMM, Dual channel memory architecture Podpora pro paměti: DDR4 2400/ 2133 MHz Max.velikost operační paměti: 32 GB Podpora pro paměti typu: XMP Grafická karta: Dle závislosti na CPU, Sdílená velikost paměti 1 GB *1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Zvuková karta: Realtek® ALC887 codec, 2/ 4/ 5.1/ 7.1-channel (podpora S/ PDIF Out) Síťová karta: Realtek® GbE LAN chip (10/ 100/ 1000 Mbit) Rozšiřující sloty: 1 x PCI Express x16 slot, running at x16 (PCI Express 3.0 standard) 5 x PCI Express x1 slots (PCI Express 2.0 standard) SATA: 4 x SATA 6Gb/ s connectors M.2: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA SSD support) Firewire: Ne USB: *4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) *6 x USB 2.0/ 1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *2 x PCIe power connectors *1 x CPU fan header *3 x system fan headers *4 x SATA 6Gb/ s connectors *1 x M.2 Socket 3 connector *1 x front panel header *1 x front panel audio header *1 x S/ PDIF Out header *1 x USB 3.1 Gen 1 header *2 x USB 2.0/ 1.1 headers *1 x Trusted Platform Module (TPM) header *1 x Clear CMOS jumper Externí porty: *1 x PS/ 2 mouse port *1 x PS/ 2 Keyboard port *1 x parallel port *1 x serial port *1 x D-Sub port *2 x USB 3.1 Gen 1 ports *2 x USB 2.0/ 1.1 ports *1 x RJ-45 port *3 x audio jacks (Line In, Line Out, Mic In) BIOS: AMI UEFI BIOS, 2 x 64 Mbit flash, (podpora DualBIOS™) Najpredávanejší tovar s podobnou cenou: Základné dosky (MB) - MB socket Intel 1151 s podobnou cenou ± 20%Cenovo podobné GIGABYTE H110-D3A (rev. 1.0) mining[najžiadanejšie 5]
