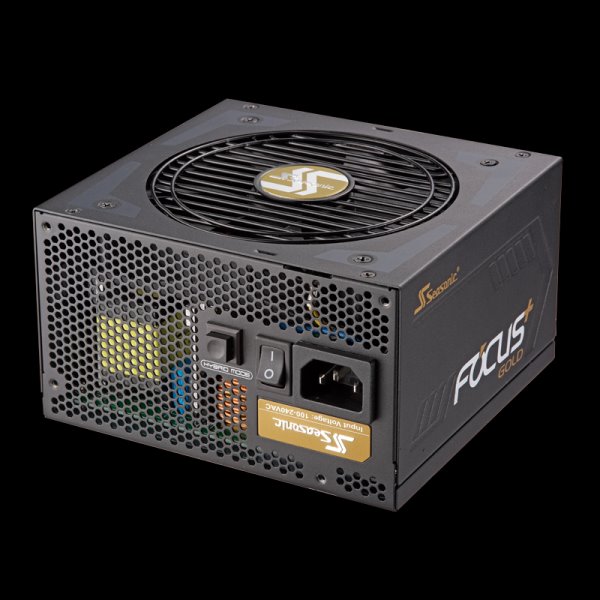

Zdroj 450W, SEASONIC FOCUS 450 Gold | 1FM45GFRT3A12X

FOCUS PLUS 450 Gold Technical Specifications


80 PLUS® Gold certified
Semi-Modular Cables
Compact Size - 140 mm deep
Tight Voltage Regulation
Cable-free Connection Design

S2FC - Smart and Silent Fan Control
DC to DC Converter Design
Multi-GPU setup
Gold plated connectors
7 years warranty

Form Factor Intel
ATX 12 V
Dimensions
150 mm (W) x 140 mm (L) x 86 mm (H)

Dimensions 140 mm (W) x 150 mm (L) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control S2FC
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50, 000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Semi-modular
Cable type Webbed cables (attached)
Flat black cables(modular)

Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100, 000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 7 Years

AC Input Voltage: 100 V - 240 V
Current: 6 - 3 A
Frequency: 50 Hz - 60 Hz

DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 37 A 0.3 A 3 A
100 W 444 W 3.6 W 15 W
Total continuous power 450 W
