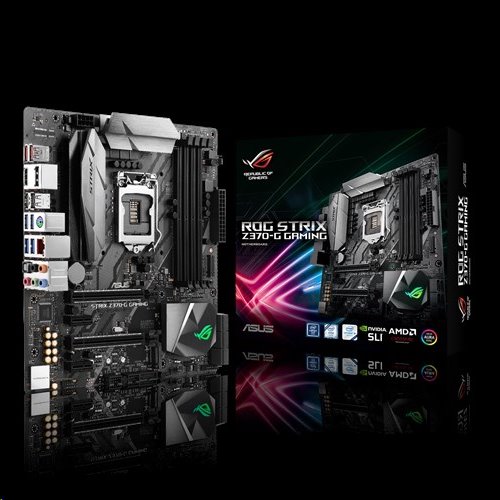

ASUS ROG STRIX Z370-G GAMING soc.1151 Z370 DDR4 mATX M.2 USB3.1 HDMI DP | 90MB0W00-M0EAY0

Intel Z370 mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 4000MHz support , dual M.2, SATA 6Gbps and USB 3.1


LGA1151 socket for 8th-gen Intel® Core™ desktop processors.
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst.
Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance.

CPU
Intel® Socket 1151 for 8th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® Z370

Memory
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered, Register Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/ DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
2 x PCIe 3.0/ 2.0 x16 (x16 or dual x8)
2 x PCIe 3.0/ 2.0 x1

Storage
Intel® Z370 Chipset :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/ s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready *2

LAN
Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/ 192kHz playback

Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/ PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

USB Ports
Intel® Z370 Chipset : *3
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z370 Chipset : *3
6 x USB 2.0 port(s)
ASMedia® USB 3.1 Gen 2 controller : *3
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)

ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV

Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
- Auto Tuning, TPU, GPU Boost
selection for optimized system cooling control

Gamer s Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/ 2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/ O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
Turbo APP

Back I/ O Ports
1 x PS/ 2 keyboard/ mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
2 x USB 2.0
4 x USB 3.1 Gen 1
1 x Optical S/ PDIF out
5 x Audio jack(s)

Internal I/ O Ports
1 x AAFP connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x CPU_OV jumper

Accessories
User s manual
1 x Vertical M.2 bracket set
I/ O Shield
4 x SATA 6Gb/ s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x Strix door hanger
1 x SLI HB BRIDGE(2-WAY-S)
1 x Cable ties pack(s)
1 x Thermistor cable(s)
1 x STRIX series sticker
