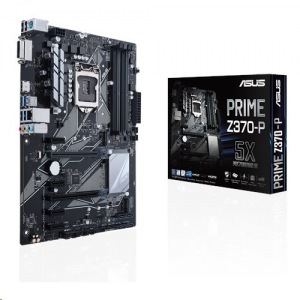

ASUS PRIME Z370-P soc.1151 Z370 DDR4 ATX M.2 USB3.1 DVI HDMI
ASUS PRIME Z370-P soc.1151 Z370 DDR4 ATX M.2 USB3.1 DVI HDMIASUS PRIME Z370-P LGA1151 DDR4 HDMI DVI M.2 Z370 ATX Motherboard with USB 3.1 for 8th Generation Intel® Core™ Processors
Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with Dual M.2, USB 3.1 Gen1 and Intel® Optane™ Memory compatibility 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability Patent-pending SafeSlot Core fortifies PCIe slots preventing damage caused by heavyweight GPUs FanXpert 4 Core with AIO Pump Header delivers advanced fan control for dynamic system cooling 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec CPU Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list Chipset Intel® Z370 Memory 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/ DVI-D ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots 1 x PCIe 3.0/ 2.0 x16 (x16, x8/ x4+x4) * 1 x PCIe 3.0/ 2.0 x16 (max at x4 mode) 4 x PCIe 3.0/ 2.0 x1 *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. Storage Intel® Z370 Chipset : 2 x M.2 Socket 3*1, , with M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/ s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/ digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity USB Ports Intel® Z370 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue) Intel® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, ) Special Features ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) M.2 Onboard(The latest transfer technologies with up to 32Gb/ s data transfer speeds) Back I/ O Ports 1 x PS/ 2 keyboard/ mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/ O Ports 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/ s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/ PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x AIO PUMP Header Accessories User s manual I/ O Shield 2 x SATA 6Gb/ s cable(s) 1 x M.2 Screw Package 1 x SCD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12.0 inch x 8.9 inch ( 30.5 cm x 22.6 cm ) Note *1. When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. Ďalšie informácie výrobcu: Najpredávanejší tovar s podobnou cenou: Základné dosky (MB) - MB socket Intel 1151 s podobnou cenou ± 20%Cenovo podobné ASUS PRIME Z370-P soc.1151 Z370 DDR4 ATX M.2 USB3.1 DVI HDMI[najžiadanejšie 5]
