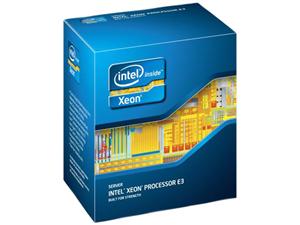

Quad-Core Intel® Xeon™ E3-1280V6 / 3, 9GHz / 8MB / LGA1151 tray | CM8067702870647SR325

Essentials

Product Collection
Intel® Xeon® Processor E3 v6 Family
Code Name
Products formerly Kaby Lake
Vertical Segment
Server
Processor Number
E3-1280V6
Status
Launched
Launch Date
Q1 17
Lithography
14 nm

Performance
# of Cores
4
# of Threads
8
Processor Base Frequency
3.90 GHz
Max Turbo Frequency
4.20 GHz
Cache
8 MB
Bus Speed
8 GT/ s DMI3
TDP
72 W
VID Voltage Range
0.55V-1.52V
Supplemental Information
Embedded Options Available
No
Conflict Free
Yes
Datasheet
View now
Learn how Intel is pursuing conflict-free technology.
Memory Specifications
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4 - 2400, DDR3L - 1866
Max # of Memory Channels
2
Max Memory Bandwidth
37.5 GB/ s
ECC Memory Supported ‡
Yes
Graphics Specifications
Processor Graphics ‡
None
Graphics Output
N/ A
4K Support
No
Max Resolution (HDMI 1.4)‡
N/ A
Max Resolution (DP)‡
N/ A
Max Resolution (eDP - Integrated Flat Panel)‡
N/ A
Max Resolution (VGA)‡
N/ A
DirectX* Support
N/ A
OpenGL* Support
N/ A
Intel® Quick Sync Video
No
Intel® InTru™ 3D Technology
No
Intel® Clear Video HD Technology
No
Intel® Clear Video Technology
No
# of Displays Supported ‡
0
Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations ‡
1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1151
Max CPU Configuration
1
Package Size
37.5mm x 37.5mm
Low Halogen Options Available
See MDDS
Advanced Technologies
Intel® Optane™ Memory Supported ‡
Yes
Intel® Turbo Boost Technology ‡
2.0
Intel® vPro™ Technology ‡
Yes
Intel® Hyper-Threading Technology ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/ O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
Intel® TSX-NI
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
SSE4.1/ 4.2, AVX 2.0
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Data Protection Technology
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Software Guard Extensions (Intel® SGX)
Yes
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Platform Protection Technology
OS Guard
Yes
Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡
Yes
Intel® Device Protection Technology with Boot Guard
Yes
