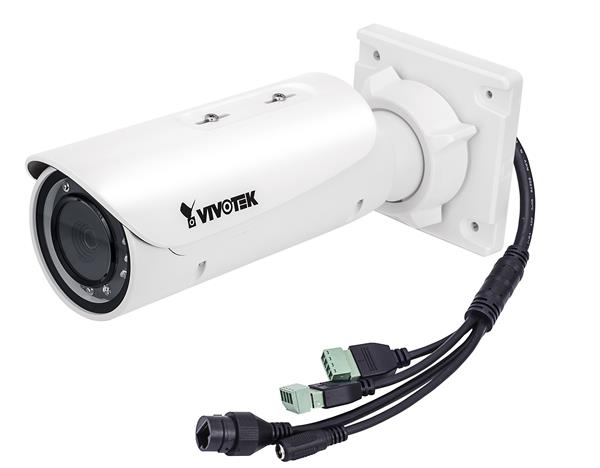

VIVOTEK IB836BA-HT IP kamera | IB836BA-HT

Model IB836BA-HT: Vari-focal, P-iris, Remote Focus

System Information
CPU Multimedia SoC (System-on-Chip)
Flash 1Gb
RAM 2Gb
Camera Features
Image Sensor 1/ 2.7" Progressive CMOS
Maximum Resolution 1920x1080 (2MP)
Lens Type Vari-focal, Remote Focus
Focal Length f = 2.8 ~ 12 mm
Aperture F1.8 ~ F2.85
Auto-iris P-iris
Field of View 34° ~ 112° (Horizontal)
19° ~ 59° (Vertical)
39° ~ 133° (Diagonal)
Shutter Time 1/ 5 sec. to 1/ 32, 000 sec.
WDR Technology WDR
Day/ Night Removable IR-cut filter for day & night function
Minimum Illumination 0.1 Lux @ F1.8 (Color)
0.01 Lux @ F1.8 (B/ W)
Pan/ tilt/ zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR
IR LED*8
On-board Storage Slot type: MicroSD/ SDHC/ SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 30 fps @ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/ N Ratio 66dB
Dynamic Range 100dB
Video Streaming Adjustable resolution, quality and bitrate, Smart Stream
Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog
Audio
Audio Capability Two-way Audio (full duplex)
Compression G.711, G.726
Interface External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10 Base-T/ 100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
VCA Line crossing detection, field detection, loitering detection
*Available per project request.
Alarm and Event
Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Remote Focus
Connectors RJ-45 cable connector for Network/ PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input DC 12V
IEEE 802.3af/ at PoE Class 0
Power Consumption Max. 13 W
Dimensions O 88 x 293 mm
Weight Net: 1264 g
Casing Weather-proof IP66-rated housing (Camera body)
Vandal-proof IK10-rated metal housing (Camera body)
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 7/ 8/ Vista/ XP/ 2000
Web Browser Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/ 8/ 9/ 10/ 11
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User s manual, quick installation guide, Installation Wizard 2, VAST 32-channel recording software
Others Quick installation guide, warranty card, sun shield, wall mount bracket, alignment sticker/ desiccant bag, waterproof connector, screw pack
