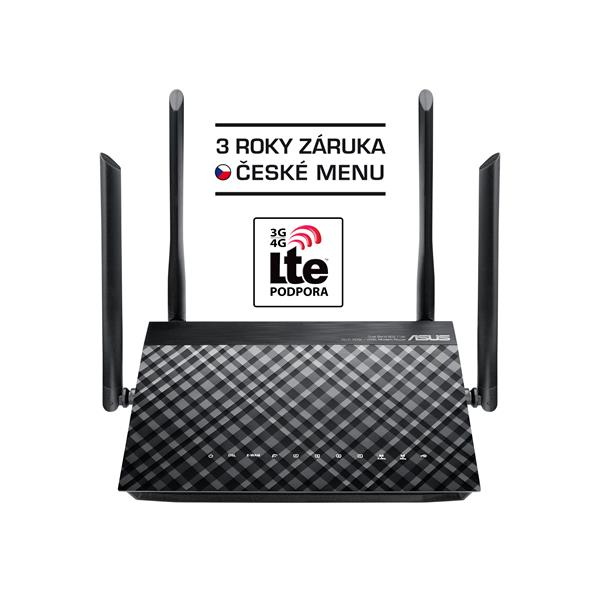

ASUS DSL-AC55U Dual-band Wireless VDSL2 / ADSL AC 1200 Router | 90IG02B0-BM3110

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
Product Segment
AC1200 enhanced AC performance : 300+867 Mbps
Wi-Fi Data Rate
802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
xDSL Data Rate
VDSL2/ ADSL2+/ ADSL2/ ADSL multimode
Support Annex A/ B/ I/ J/ L/ M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T G.993.2
ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
ITU-T G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
ITU-T G.993.2 Compliant, Annex A, B
ITU-T G.993.5 (Vectoring)
ITU-T G.998.4 (G.inp) Improved impulse noise protection
ATM and PTM (dual-priority)

VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps
Features
DHCP server, firewall/ NAT, DynDNS
VPN server(PPTP/ OpenVPN)
VPN client(PPTP/ L2TP/ OpenVPN)
Dual WAN Fail over/ Fail back/ Load balance
Traffic monitor/ Quality of Service (QoS)
DSL spectrum
IPTV(VDSL/ ADSL WAN)
DSL feedback mechanism
Save/ Resotre configuration file
WiFi Bandwidth Limiter
Antenna
External antenna x 4
LED Indicator
Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x 1
Button
WPS Button, Reset Button, Power Button, Wireless on/ off Button
Ports
4 x RJ45 10/ 100/ 1000 BaseT for LAN
1 x RJ45 10/ 100/ 1000 BaseT for WAN
1 x RJ11 for xDSL
USB Ports
USB 2.0 x 1
USB Applications
Printer Server
FTP Server
Download Master
3G/ 4G sharing
Operating Frequency
2.4GHz
5GHz
Operation Channel
13 Europe (ETSI)
Memory
128MB NAND flash/ 128MB DDR3
Output Power
ac mode : 17 dBm
b mode : 20.5 dBm
g mode : 18.5 dBm
n mode : 17 dBm
a/ n mode : 19 dBm
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/ VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Utilities
- Download master:
.Support BT, NZB, HTTP, ED2K
.Support encryption, DHT, PEX and magnet link
.Upload and download bandwidth control
.Download scheduling

- Media server:
.Image: JPEG
.Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
.Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

- Printer Server:
.Multifunctional printer support(Windows only)
.LPR protocol support
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
Power Adapter
AC Input : 110 ~240 V(50~60HZ)
DC Output : 12 V/ 1.5 A
Power Consumption : 18 W Max.
Certificates
CE, Telepermit, RCM
Dimensions
20.7 x 14.9 x 3.6 ~ cm (WxDxH)
Weight
360 g (Device Only)
OS Support
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® XP
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Package Content
DSL-AC55U Dual-band 802.11ac VDSL/ ADSL Modem Router
RJ-45 cable
RJ-11 cable
Support CD(User manual and utility)
Power adapter
Warranty card
Quick start guide
Splitter (varies with regions)
