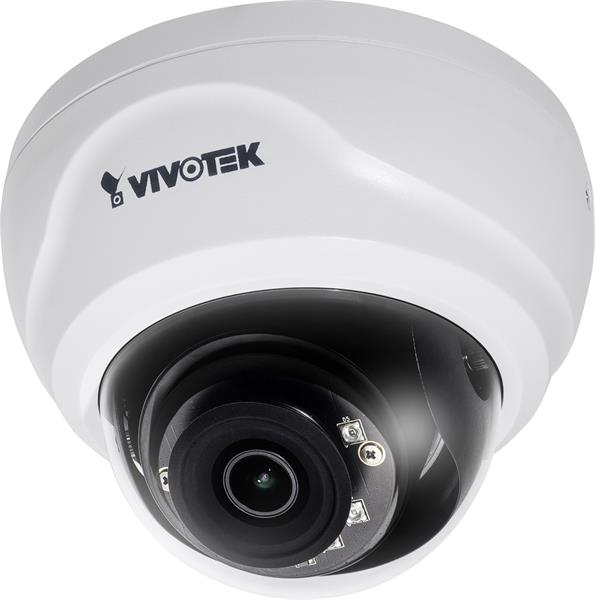

VIVOTEK FD8169A IP kamera (1920*1080 - 30 sn / s, 2, 8mm, PoE, WDR, slot na MicroSD ka | FD8169A

Specifications
Model FD8169A
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 256 MB
Camera Features
Image Sensor 1/ 2.9" Progressive CMOS
Maximum Resolution 1920 x 1080 (2MP)
Lens Type Fixed-focal
Focal Length f = 2.8 mm
Aperture F1.8
Field of View 105° (Horizontal)
60° (Vertical)
109° (Diagonal)
Shutter Time 1/ 5 sec. to 1/ 32, 000 sec.
WDR Technology WDR Enhanced
Day/ Night Removable IR-cut filter for day & night function
Minimum Illumination 0.06 Lux @ F1.8 (Color)
0.01 Lux @ F1.8 (B/ W)
Pan/ Tilt/ Zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators Built-in IR illuminators, effective up to 20 meters
with Smart IR
IR LED*8
On-board Storage MicroSD/ SDHC/ SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 30 fps@ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/ N Ratio 68.5 dB
Dynamic Range 69.4 dB
Video Streaming Adjustable resolution, quality and bitrate
Smart Stream II
Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10 Base-T/ 100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
Alarm and Event
Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events Event notification using HTTP, SMTP, FTP and NAS server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Connectors RJ-45 for Network/ PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 0
Power Consumption Max. 8.5 W
Dimensions O 129 mm x 94 mm
Weight Net: 416.4 g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F )
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F )
Humidity 90%
Warranty 24 months
System Requirements
Operating System Microsoft Windows 8/ 7/ Vista/ XP/ 2000
Web Browser Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/ 8/ 9/ 10/ 11
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User s manual, quick installation guide, Installation Wizard 2, VAST 32-CH Software
Others Quick installation guide, alignment sticker, screw pack
