QNAP™ TS-1253U 12 Bay NAS, Intel Celeron® 2.4GHz , 4GBGB DDR3L RAM, EU Edition | TS-1253U-EU

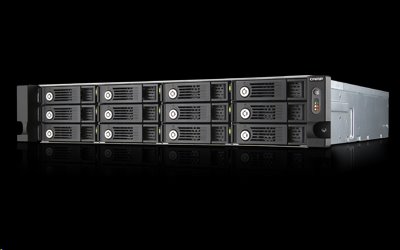

TS-1253U

Powerful, reliable and scalable NAS for SMBs

Processor Quad-core Intel® Celeron® 2.0GHz (up to 2.42GHz)
Memory Installed: 4GB DDR3L SDRAM (1 x 4GB)
Slots: 2 SODIMM (Max: 8GB)

NOTE:
1. When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash memory 512MB
Internal drive 12 x 3.5" or 2.5" SATA 6Gb/ s, SATA 3Gb/ s hard drive or SSD

NOTE:
1. The system is shipped without HDD.
2. HDD compatibility list
Drive tray 12 Hot-swappable and lockable trays
Network interface 4 RJ45 Gigabit Ethernet ports
Ports 4 USB 3.0
1 HDMI
1 console (system maintenance)
LED indicators Status, LAN, USB, HDD 1-12
Buttons Power, reset
Alarm buzzer System warning
Form factor 2U, rack mountable
Dimensions 89 (H) x 482 (W) x 534 (D) mm
3.5 (H) x 18.98 (W) x 21.02 (D) inch
Weight Net weight: 16.14 kg (35.58 lbs.)
Gross weight: 18.98 kg (41.84 lbs.)
Power consumption (W) HDD standby: 35.14W
In operation: 83.52W
(with 12 x 2TB HDD installed)
Sound Level* Sound pressure (LpAm) :35.2 dB(A)
Temperature 0-40°C
Humidity 0~95% R.H.
Power supply Input: 100-240V AC, 50/ 60Hz; Output: 250W
Fan 2 x 70mm, 12V DC



1. LED Indicators: HDD 1~12 6. Gigabit LAN x 2
2. Power Button 7. USB 3.0 Port x 4
3. LED Indicators: Status, LAN, USB 8. Gigabit LAN x 2
4. Console port (for maintenance only) 9. HDMI
5. Password & Network Settings Reset Button 10. Power Connector
