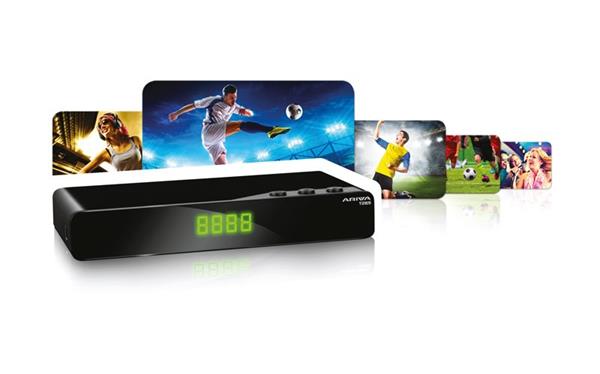

FERGUSON DVB-T / T2 receiver ARIVA T265 (pozemné digitálne vysielanie) H.265 / HEVC | arivaT265

Support for DVB-T/ T2
Support for H.265/ HEVC - a state of the art video codec that offers excellent image quality
2 x USB - connect more external devices and record your favorite programs
Support for Dolby Digital Plus
Multimedia support - just plug a USB drive with the media to display your photos, videos or music and have a good time with your loved ones. Of course, subtitles in many formats are supported.

Inputs/ Outputs:

ANT IN
LOOP OUT
USB (second port on the side)
HDMI
Analog Audio/ Video
S/ PDIF
Power supply 5V DC



Technical Specifications:

STB Type: DVB-T/ T2 Receiver
Main Chipset: GX3201H
SMPS Type: Adapter
Dimension (width x depth x height): 134 x 88 x 27 mm
Net Weight: 135 g
CPU frequency: 660 MHz
Flash Memory: 4 MB
SDRAM Memory: 1PC 64X16 Mbit
Tuner Type: R836
Frequency Range: 50~870 MHz
Input Impedance: 75 ?
Active Ant Power: 5VDC
Demultiplexer: MPEG2 ISO/ IEC 13818-1
Input Bit Rate: Max 100 Mbit/ s
Video Decode:
H.265 video (HEVC/ H.265), BP/ MP/ HP up to L4.1& H.263 P3
H.264 video (ISO/ IEC 14496-10), BP/ MP/ HP up to L4.1
MPEG-4 video (ISO/ IEC 14496-2), SP/ ASP up to L5 AVS& AVS plus
MPEG-2 video (ISO/ IEC 13818-2), MP@HL
MPEG-1 video (ISO/ IEC 11172-2)
Aspect Ratio: 4:3, 16:9
Video Resolution: 1920×1080, 1280×720, 720×480
Audio Decode:
MPEG-1 layerI/ II PCM downmix IEC958 SPDIF Dolby 5.1 channel
Dolby downmix 2 channel Dolby Prologic2
Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz
Video Bandwidth: SD:5.0 MHz (-3dB), HD:30 MHz (-3dB)
Video Impedance: 75 ?
Video Voltage Level: 1.0 Vp-p
Audio Freq. Range: 20~20 kHz
Audio Impedance: 600 ?
Audio Voltage Level: 2V rms(5.6Vp-p)
Input Voltage: 5VDC Adapter
Consumption: Max 10 W
Temperature: 0~40 °C
Humidity: 95%
