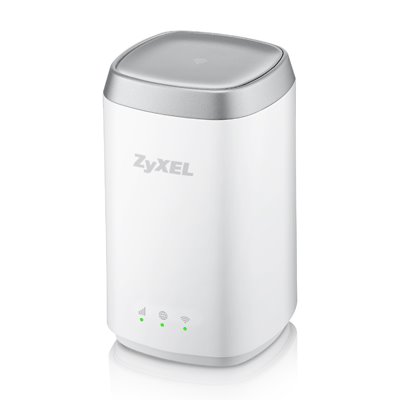

ZyXEL LTE 4506 4G LTE-A 802.11ac WiFi HomeSpot Router, 300Mbps LTE-A, 1GbE LAN, Dual-ba | LTE4506-M606-EU01V1F

Wi-Fi AP Features

802.11 ac/ n/ a/ g/ b, 2.4 GHz & 5GHz Simultaneous Dual-band (2.4GHz: 2x2; 5GHz: 2x2)
Auto Channel Select (ACS)
Wi-Fi enabled device #: up to 32
Hidden SSID
Security modes: WPA/ WPA2 PSK, & WPA/ WPA2 mixed mode
Access control: STA blacklist/ white list
Dual-SSID support
WPS: Pin and PBC, WPS2.0

System Features

Web UI/ multiple language supported
SMS management
Quota management
APN/ PIN management
Network selection
Data usage/ statistic
DHCP server
NAT
Port forwarding
IP firewall
Proxy DNS
VPN pass-through
TR-069 management
IPV6/ IPv4 dual stack

Operating System Supported

IE 8, IE 9, IE10, IE11, Edge
Firefox latest 2 version (38, 39)
Chrome latest 2 version (42, 43)
Safari 7, 8


LTE Air Interface

Standard compliant: 3GPP Release 10 Category 6
Supported frequency:Band 1/ 3/ 7/ 8/ 20/ 28/ 40 –LTE TDD 2300 MHz LTE FDD 2600/ 2100/ 1800/ 900/ 800/ 700 MHz
Carrier aggregation support:
B3+B20/ B3+B7/ B3+B8/ B7+B20/ B7+B28/ B40+B40/ B3+B3/ B7+B7/ B3+B28
LTE antenna:
2 internal antennas
FDD LTE peak data rate:
300 Mbps DL within 40 MHz bandwidth (CA)
50 Mbps UL within 20 MHz bandwidth
TDD LTE peak data rate:
224 Mbps DL within 40MHz bandwidth (CA)
10 Mbps UL within 20 MHz bandwidth

UMTS/ EDGE/ GPRS/ GSM Air Interface

Standard compliant:
DC-HSDPA/ HSPA+compliant
Supported frequency:
HSPA+/ UMTS 2100/ 900 MHz (band 1/ 8)
EDGE/ GPRS/ GSM 1800/ 900 MHz (band 3/ 8)
DC-HSPA+ downlink data rate up to 42 Mbps
HSUPA uplink data rate up to 5.76 Mbps
UMTS data rate up to 384 kbps
EDGE data rate up to 236.8 kbps
GPRS data rate up to 85.6 kbps

Hardware Interface

DC input (5 V/ 1.5 A, Micro USB)
One UICC/ USIM card slot
Reset button
Wi-Fi on/ off button
Power on/ off button
One Gigabit Ethernet (RJ-45)
LED indicators:
Signal strength
Internet status
Wi-Fi status


Item dimensions (WxDxH)

66.8 x 66.8 x 110.5 mm (2.63" x 2.63" x 4.35")
Item weight

150 g (0.33 lb.)
