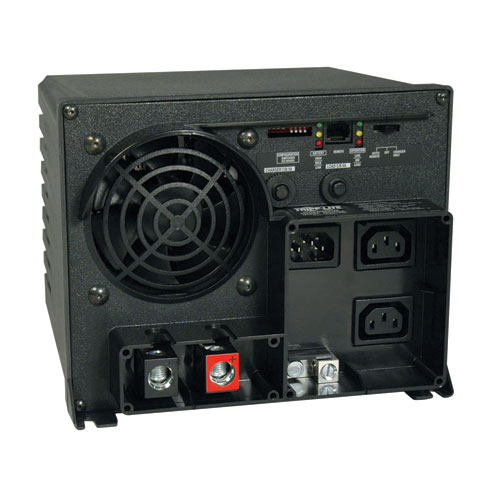

TrippLite POWERVERTER® Series 750W APS X Series 750W Inverter / Charger with Auto-Transfer | APSX750

APSX750

PowerVerter® APS X Series 750W Inverter/ Charger with Auto-Transfer Switching and 2 C13 Outlets
12V DC or 230V AC input; 230V, 50 Hz output; 2 AC outlets
750 watts continuous, 1125 watts OverPower™ and 1500 watts DoubleBoost™ inverter output (see specifications)
3-stage, selectable 5 / 20 amp, wet/ dry cell battery charger with 1/ 2 cycle transfer time
Auto Transfer Switching option for battery backup / UPS operation
Reliability enhanced large-transformer design with protected DC terminals

SpecificationsOVERVIEW
Intended Application Emergency Home Power
OUTPUT
Frequency compatibility 50 Hz
Output watts 750
Continuous output capacity (watts) 750
Peak output capacity (watts) 1500
Output nominal voltage 230V
Output voltage regulation LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/ -5%).
Output frequency regulation 50 Hz (+/ - 0.3 Hz)
Overload protection Includes 3A input breaker dedicated to the charging system and 4A output breaker for AC output loads
Outlet quantity / type 2 Universal (IEC-320)
INPUT
Nominal Input Voltage(s) Supported 230V AC
Recommended Electrical Service DC INPUT: Requires 12VDC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 100A minimum battery system fusing is recommended. AC INPUT: 230VAC
Maximum input amps / watts DC INPUT: Full continuous load - 72A at 12VDC. AC INPUT: 6.2A at 230VAC with full inverter and charger load (2.2A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)
Input connection type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: IEC-320 C14 inlet connection
Voltage compatibility (VAC) 230
Voltage compatibility (VDC) 12
BATTERY
Expandable battery runtime Runtime is expandable with any number of user supplied wet or gel type batteries
DC system voltage (VDC) 12
Battery Pack Accessory (optional) 98-121 sealed lead acid battery (optional)
Battery charge Selectable 5 / 20 amp with 1/ 2 cycle (10 ms) transfer time
LEDS ALARMS & SWITCHES
Switches 3 position on/ off/ remote switch enables simple on/ off power control plus "auto/ remote" setting that enables distant on/ off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/ remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
Front panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
SURGE / NOISE SUPPRESSION
AC suppression joule rating 840
PHYSICAL
Shipping Dimensions (HWD/ in) 12.5 x 11 x 10.75
Shipping Dimensions (HWD/ cm) 31.75 x 27.94 x 27.31
Shipping weight (lbs) 20
Shipping weight (kg) 9.1
Unit Dimensions (HWD/ in) 7 x 8.75 x 9
Unit Dimensions (HWD/ cm) 17.78 x 22.23 x 22.86
Unit weight (lbs) 18.6
Unit weight (kg) 8.3
Cooling method Multi-speed fan
Material of construction Polycarbonate
Style Heavy-duty with built-in battery charger
Form factors supported Mounting slots enable permanent placement of APSX750 on any horizontal surface (see manual for additional mounting information)
ENVIRONMENTAL
Relative Humidity 0-95% non-condensing
LINE / BATTERY TRANSFER
Transfer time from line power to battery mode Transfer time from line power to battery mode: 10 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
Low voltage transfer to battery power Low voltage transfer to battery power: In AC "auto" mode, inverter/ charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual)
High voltage transfer to battery power In AC "auto" mode, inverter/ charger switches to battery mode as line voltage increases to 272
SPECIAL FEATURES
Appearance Black color
Remote control capability Yes
CERTIFICATIONS
Certifications RoHS Compliant
WARRANTY

Product Warranty Period (International) 2-year limited warranty
