TrippLite SMARTRACK™ Series 12U Wall-Mount Rack Enclosure Cabinet | SRW12US

SMARTRACK™ Series

SRW12US

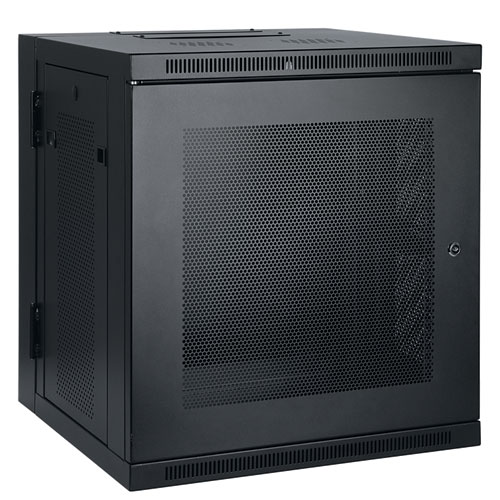

SmartRack 12U Wall-Mount Rack Enclosure Cabinet
12U with adjustable front and rear vertical rackmount rails

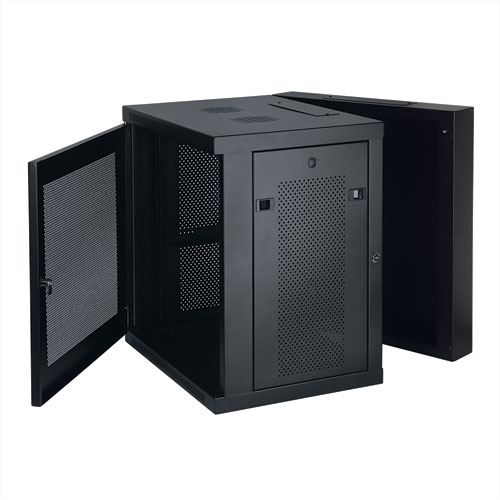

Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

SpecificationsPHYSICAL
Installed whole system maximum rack depth (inches) 20.5
Installed whole system maximum rack depth (cm) 52.07
Installed whole system minimum rack depth (inches) 3
Installed whole system minimum rack depth (cm) 7.62
Rack Height 12U
Shipping Dimensions (HWD/ in) 27.95 x 26.38 x 24.41
Shipping Dimensions (HWD/ cm) 70.93 x 67 x 62
Shipping weight (lbs) 64
Shipping weight (kg) 28.8
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)
Unit weight (lbs) 60
Unit weight (kg) 27.21
Unit Dimensions (cm) EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)
Color Black
Weight Capacity - Stationary (lbs) 200
Weight Capacity - Stationary (kg) 90.7
Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
