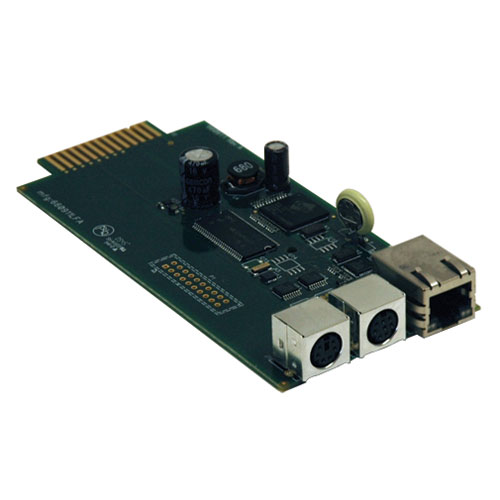

TrippLite SNMPWEBCARD For remote monitoring and control via SNMP, Web or Telnet | SNMPWEBCARD

For remote monitoring and control via SNMP, Web or Telnet


Click here to download the latest SNMPWEBCARD firmware version.
NEW firmware web-only version 12.06.0061 now available!
Supports secure file transfer
Supports SNMPv3, including SNMPv3 traps
Java 6 and 7 WebUI support
Improved performance
Supports IPv6
RADIUS Support (FreeRADIUS, TekRADIUS)
Data and event logs can be setup to automatically send the log via email or HTTP post when the configurable log size (64-2048) is reached
Enhanced Remote Syslog capability to define if event, data or accounting entries should be sent
CLI interface that allows control and configuration through a network CLI interface, SSH or Telnet, or through a SNMPWEBCARD s serial configuration port
Event actions
Individual outlet events

NEW firmware web-only version 12.06.0061 now available! – supports IPv6, SNMPv3, and secure file transfer
Graphical User Interface supports Java 1.6 and 1.7 runtime environments
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Makes any slot-equipped Tripp Lite UPS a managed device on the network, controllable using SNMP network management platforms or a web browser
Web interface provides remote viewing of current site electrical data, UPS self-test and alert logs, as well as logged power events such as blackouts, brownouts, overvoltages, and other electrical problems
Offers the ability to control UPS output power and remote reboot of locked network devices without interrupting power to other loads when used with any Tripp Lite UPS equipped with load management receptacles
DHCP/ Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
10/ 100 Mbps auto-sensing allows optimal communication compatibility with your current 10/ 100 Base-T network
Real-time clock support maintains the time of day and date even if the UPS is shut down
NTP (Network Time Protocol) support gives the card the ability to receive automatic updates to its real-time clock from a NTP server
2-tier level access allows an administrator and a guest to log into the web browser for monitoring and/ or management of slot-equipped Tripp Lite UPS systems
Multiple user support allows for viewing by a number of users at the same time
Full Telnet access gives you the ability to remotely monitor and manage your UPS system via a TELNET session
Optional SSL (Secure Socket Layer) security setting provides the capability to create an encrypted connection to the card via a web browser
Offers the ability to shut down remote operating systems through your networks. (Supported operating systems must have Power Alert 12 installed. See PowerAlert section for software support)
Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification sent to them as a result of a site electrical or UPS problem.
Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, SCP
RoHS Compliant

Typical Applications

Ideal for remote management and control of UPS and power data in LAN/ WAN racks, computer rooms and data center environments

System Requirements

Tripp Lite UPS/ PDU with SNMPWEBCARD running Version 12.04.0055
FTP utility
Web browser
Jave Runtime Environment 1.6.026 or later
NOTE: Existing 12.04.0048 and 12.04.0049 cards can be upgraded to the 12.04.0055 firmware to provide SNMPv3 support, then to 12.06.0061 for IPv6 support. Firmware is not applicable with cards running firmware version 12.04.0047 or earlier.

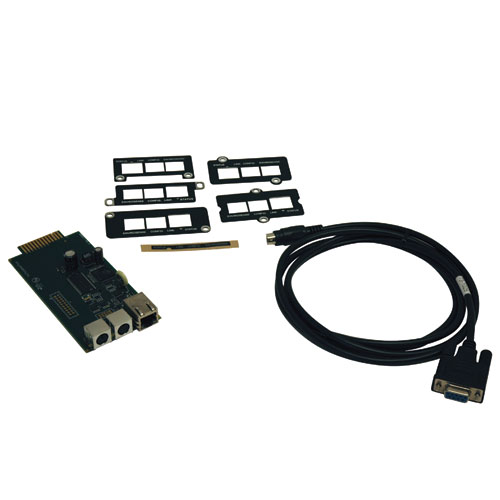

Package Includes

SNMPWEBCARD
Quick Start Installation Guide
Configuration Cable
Software CD including Owner s Manual & MIB files
Cover Plates (secures card in UPS system s SNMP accessory slot)
