TrippLite SMARTONLINE® Series 1kVA On-Line Double-Conversion UPS, 2U Rack / Tower, 200 / | SUINT1000RTXL2Ua

SmartOnline 1kVA On-Line Double-Conversion UPS, 2U Rack/ Tower, 200/ 220/ 230/ 240V C13 outlets


OUTPUT
Output Volt Amp Capacity (VA) 1000
Output kVA capacity (kVA) 1
Output Watt Capacity (watts) 800
Output power factor 0.8
Crest Factor 3:1
Nominal Output Voltage(s) Supported 200V; 220V; 230V; 240V
Nominal Voltage details 230V default
Frequency compatibility 50 / 60 Hz
Frequency compatibility details Output frequency matches input nominal on startup, defaults to 50 Hz on cold-start
Output voltage regulation (line mode) +/ - 2%
Output voltage regulation (Economy line mode) +/ - 10%
Output voltage regulation (Battery mode) +/ - 2%

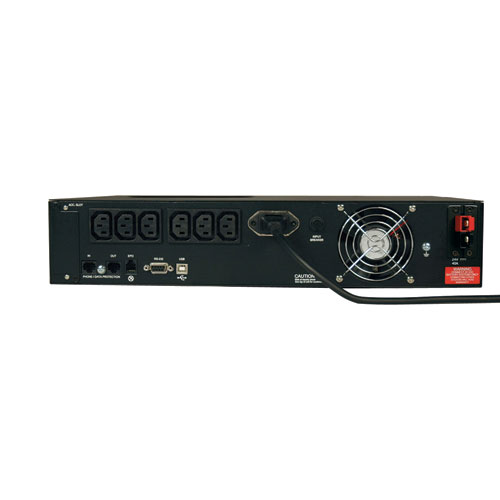

Built-in UPS output receptacles 6 C13 outlet(s)
Included output power cables Includes 2 C13 to C14 output power cables
Output AC waveform (AC mode) Sine wave
Output AC waveform (battery mode) Pure Sine wave

INPUT
Rated input current (at maximum load) 5.1A (200V), 4.9A (208V), 4.6A (220V), 4.4A (230V), 4.2A (240V)
Nominal Input Voltage(s) Supported 200V AC; 220V AC; 230V AC; 240V AC
UPS input connection type C14 inlet
UPS input connection description IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
Input circuit breaker 8A

BATTERY
Full load runtime (minutes) 4 min. (800w)
Half load runtime (minutes) 12 min. (400w)
Expandable battery runtime Extended runtime supported via optional external battery packs
External battery pack compatibility BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
DC system voltage (VDC) 24
Battery recharge rate (included batteries) Less than 6 hours from 10% to 80%
Replacement battery cartridge (internal UPS battery replacement) RBC92-2U
Battery Access Front panel battery access door
Battery replacement description Hot-swappable, user replaceable batteries

VOLTAGE REGULATION
Voltage regulation description Online, double-conversion power conditioning
Overvoltage correction 2% output voltage regulation during overvoltages to 275
Undervoltage correction 2% output voltage regulation during undervoltages to 156
Severe undervoltage correction 2% output voltage regulation during undervoltages to 130 (under 70% load only)

LEDS ALARMS & SWITCHES

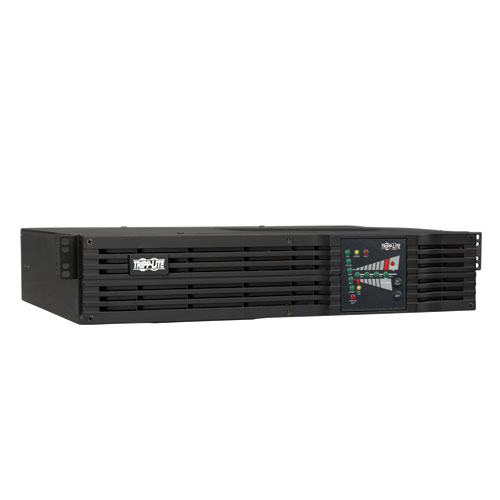

LED Indicators 14 LEDs indicate line power, online mode, economy/ bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/ tower formats
Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch
Switches 2 Switches control off/ on power status and alarm-cancel/ self-test operation
SURGE / NOISE SUPPRESSION
UPS AC suppression joule rating 1225
UPS AC suppression response time Instantaneous
UPS Dataline suppression 1 line TEL/ DSL (1 in / 1 out); 10/ 100Base T Ethernet
EMI / RFI AC noise suppression Yes

PHYSICAL
Installation form factors supported with included accessories 4 post 19 inch rackmount (mounting rail kit included)
Installation form factors supported with optional accessories 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Primary form factor Rackmount
UPS / Power Module dimensions in primary form factor (height x width x depth / inches) 3.5 x 17.5 x 13.5
UPS / Power Module dimensions in primary form factor (height x width x depth / cm) 8.9 x 44.4 x 34.3
Installed whole system total rack space height (rack spaces) 2U
Secondary form factor Tower (requires 2-9USTAND)

UPS / Power Module weight (lbs) 28
UPS / Power Module weight (kg) 12.7
UPS Shipping dimensions (height x width x depth / inches) 8.8 x 23.8 x 20.2
UPS Shipping dimensions (height x width x depth / cm) 22.2 x 60.3 x 51.4
Shipping weight (lbs) 40.3
Shipping weight (kg) 18.3
UPS housing material Steel
Cooling method Fan

ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full load) 406.4
AC economy mode BTU / hr. (full load) 173.6
Battery mode BTU / hr. (full load) 442.8
AC economy mode efficiency rating (100% load) 94%

COMMUNICATIONS
Communications interface USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/ Web interface
Network monitoring port description Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER
Transfer time No transfer time (0 ms.) in online, double-conversion mode
Low voltage transfer to battery power (setpoint) 160V (100% load), 130V (
